Step 1

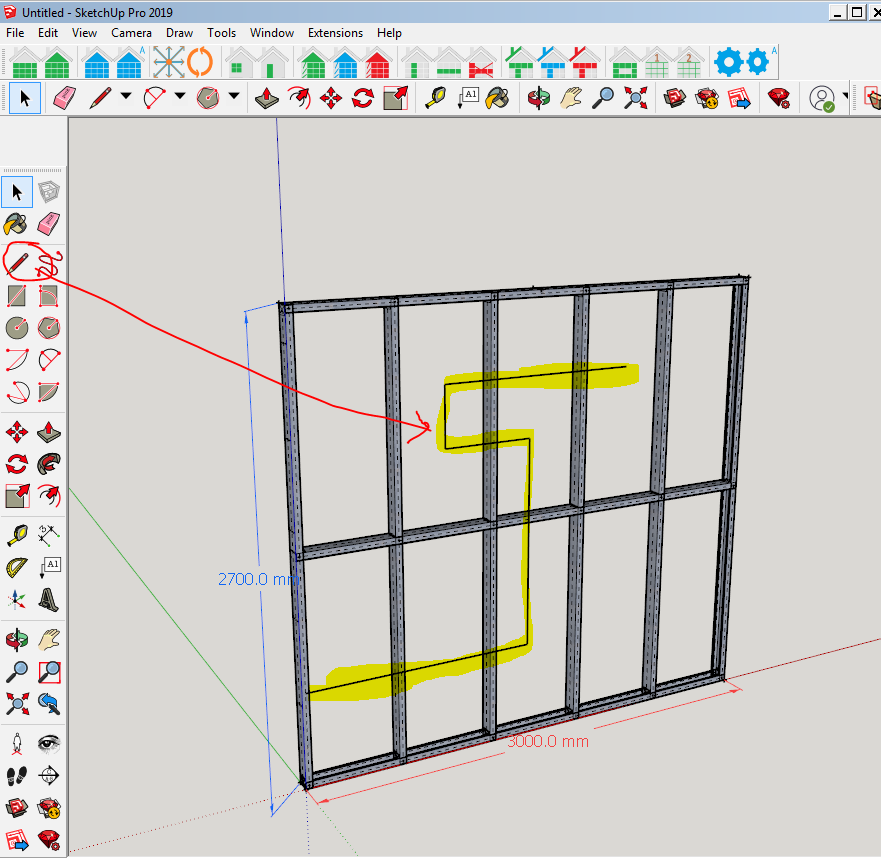

Draw Reference Lines using pencil tool across the flange. The will follow the path of your plumbing or conduit.



Step 2

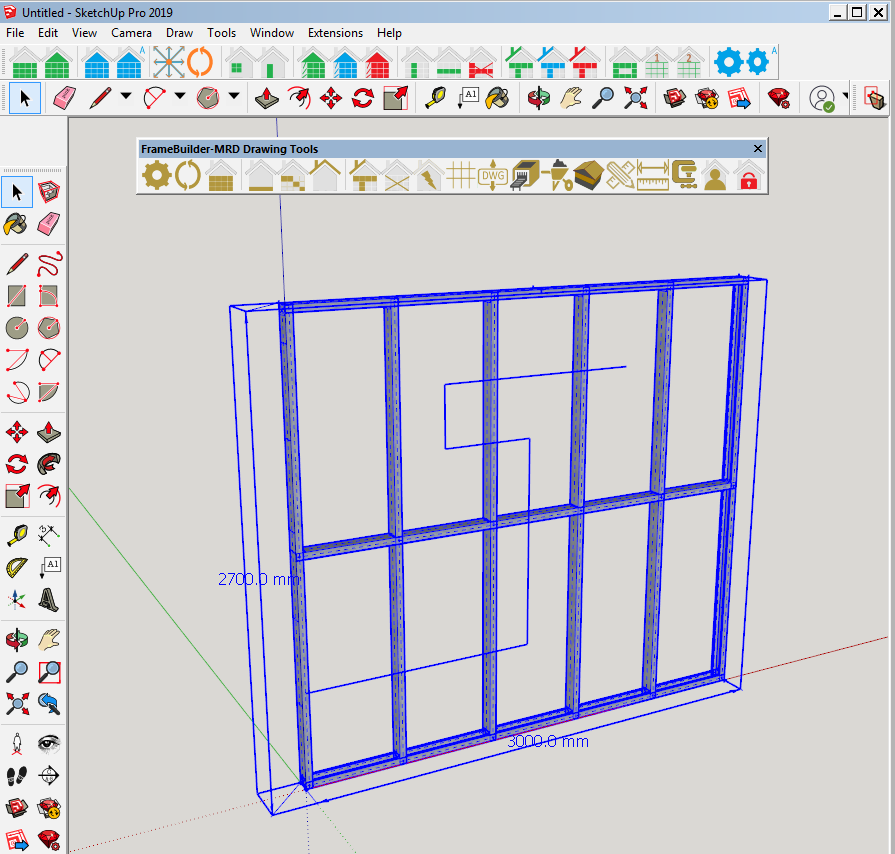

Select Lines and Wall



Step 3

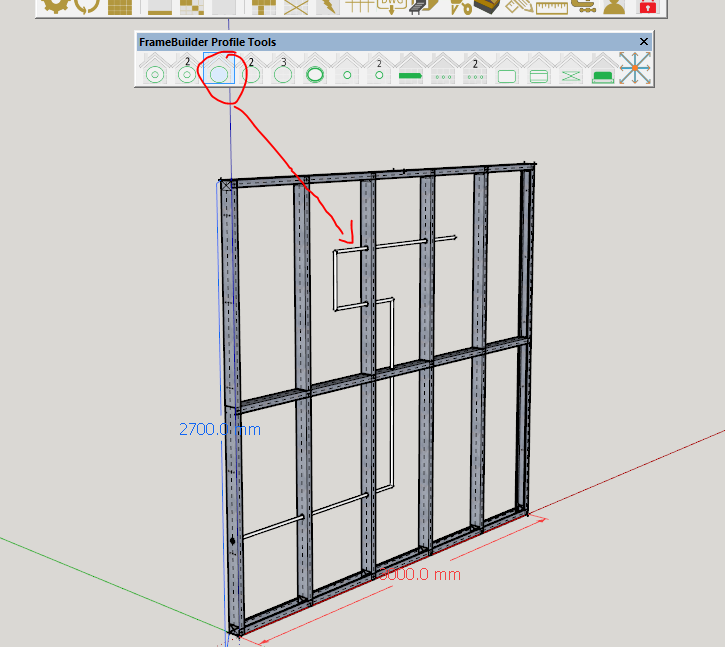

Open up the Profile Toolset. Select the tool you wish to punch such as service hole.
